 CG资源网 >> 综合分类 >> AutoCAD建筑施工图制作视频教程

本视频教程是由Digital-Tutors机构出品的AutoCAD建筑施工图制作视频教程,Digital-Tutors Drawing a Site Plan in AutoCAD,时长:1小时41分,大小:493 MB,MP4高清视频格式,附工程源文件,教程使用软件:AutoCAD 2014,作者:Pierre Derenoncourt,共15章,语言:英语。

AutoCAD(Auto Computer Aided Design)是美国Autodesk公司首次于1982年开发的自动计算机辅助设计软件,用于二维绘图、详细绘制、设计文档和基本三维设计。现已经成为国际上广为流行的绘图工具。AutoCAD具有良好的用户界面,通过交互菜单或命令行方式便可以进行各种操作。它的多文档设计环境,让非计算机专业人员也能很快地学会使用。在不断实践的过程中更好地掌握它的各种应用和开发技巧,从而不断提高工作效率。AutoCAD具有广泛的适应性,它可以在各种操作系统支持的微型计算机和工作站上运行。

Digital-Tutors机构是号称全球最大的CG付费教程网站,2000多万次视频播放记录,顶级客户的优秀项目实例,被誉为教学和娱乐结合的最好的教程,RenderMan创建人称之为“完美的学习站点”,成立至今已经有12年之久,内容集中在视频制作和游戏制作两大板块,其网站完整的教学的理念,先进的技术支持(他们甚至开启了移动手机看教程的计划,支持IPAD/IPHONE/ANDROID),都让人耳目一新。尤其是多层级的教学难度设置,有趣的考试内容,时不时的竞赛,让DT成为非常活跃的一个CG机构。

Digital-Tutors Drawing a Site Plan in AutoCAD

In this set of tutorials, we’ll take a step by step approach to creating a site plan for a residential property.

We’ll begin by importing a building footprint that also displays the first floor plan. We’ll then begin drawing property lines, driveways, landscaping elements as well as utility easements. Next we’ll focus our attention to what’s going on outside of the site and draw as well as label surrounding properties and buildings. We’ll also use a simple technique to create unique looking trees and shrubs throughout the site. Finally we’ll add text and Multileaders to call out elements within our plan and to better tell the story of our site.

By the end of this training you’ll gain an understanding what elements to include in your site plan as well as how to draw them.

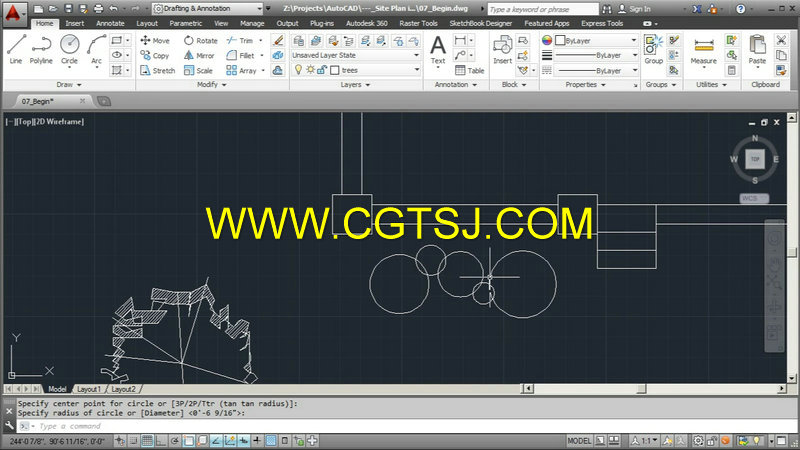

AutoCAD建筑施工图制作视频教程的图片1
AutoCAD建筑施工图制作视频教程的图片2
AutoCAD建筑施工图制作视频教程的图片3
AutoCAD建筑施工图制作视频教程的图片4
AutoCAD建筑施工图制作视频教程的图片5

-----------------------------------------------------------------

资源名称: AutoCAD建筑施工图制作视频教程

本站编号:  VX3129

百度网盘1: 下载链接 访问码 69v2

解压密码:  查看密码

更多的信息: 待补充
