本视频教程是由Digital-Tutors机构出品的Revit多视图设计训练视频教程，Digital-Tutors Preparing Views for Competition Boards in Revit，时长：34分，大小：240 MB，MP4高清视频格式，附工程源文件，教程使用软件：Revit 2014，共7个章节，作者：Pierre Derenoncourt，语言：英语。

Revit是Autodesk公司一套系列软件的名称。Revit系列软件是专为建筑信息模型(BIM)构建的，可帮助建筑设计师设计、建造和维护质量更好、能效更高的建筑。AutodeskRevit作为一种应用程序提供，它结合了AutodeskRevit Architecture、AutodeskRevit MEP和AutodeskRevit Structure软件的功能。

Digital-Tutors机构是号称全球最大的CG教程网站，2000多万次视频播放记录，顶级客户的优秀项目实例，被誉为教学和娱乐结合的最好的教程，RenderMan创建人称之为“完美的学习站点”，成立至今已经有12年之久，内容集中在视频制作和游戏制作两大板块，其网站完整的教学的理念，先进的技术支持（他们甚至开启了移动手机看教程的计划，支持IPAD/IPHONE/ANDROID），都让人耳目一新。尤其是多层级的教学难度设置，有趣的考试内容，时不时的竞赛，让DT成为非常活跃的一个CG机构。

Digital-Tutors Preparing Views for Competition Boards in Revit

In this set of tutorials we’ll learn how to create several views that will help you illustrate the intent of your conceptual designs.

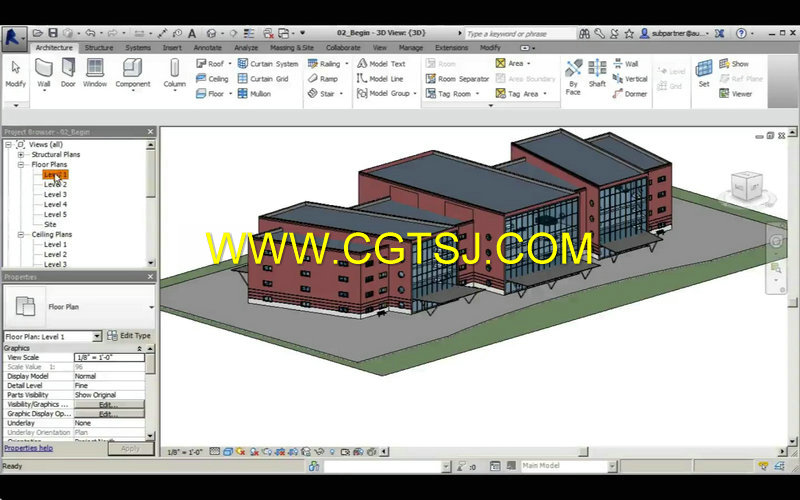

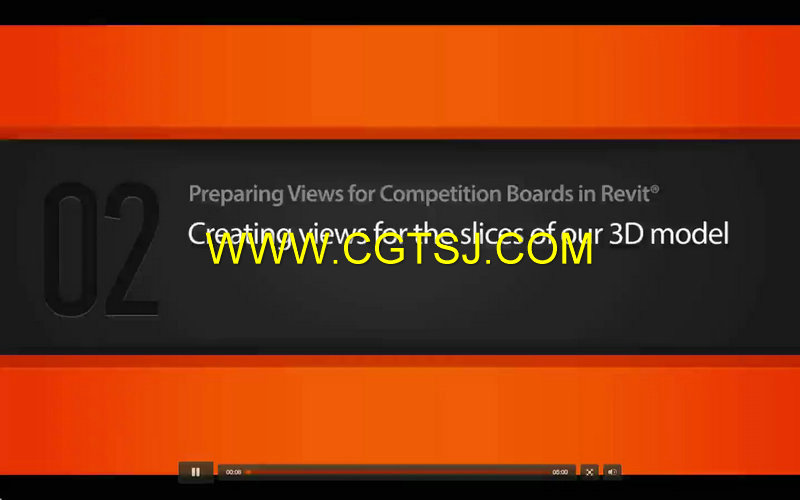

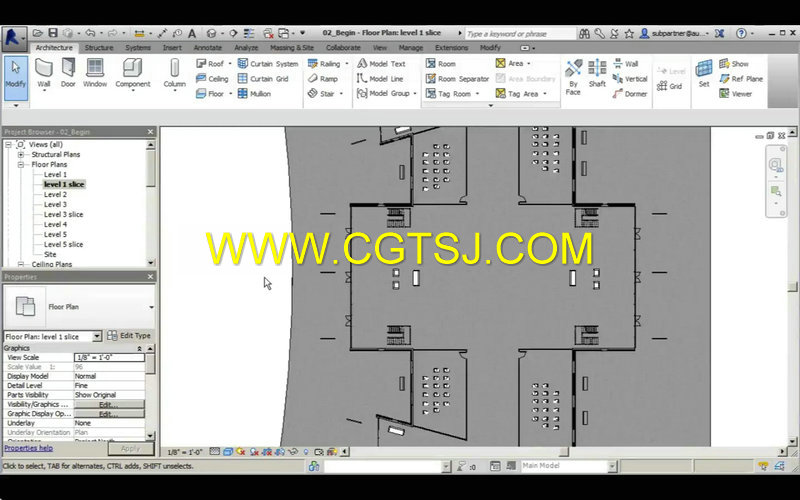

We’ll get started by slicing a model into a few vertical pieces in order to break up the model into it’s main components. Next we’ll continue exploding views and expand our building elements both vertically and horizontally tying them back to their original position with line paths.

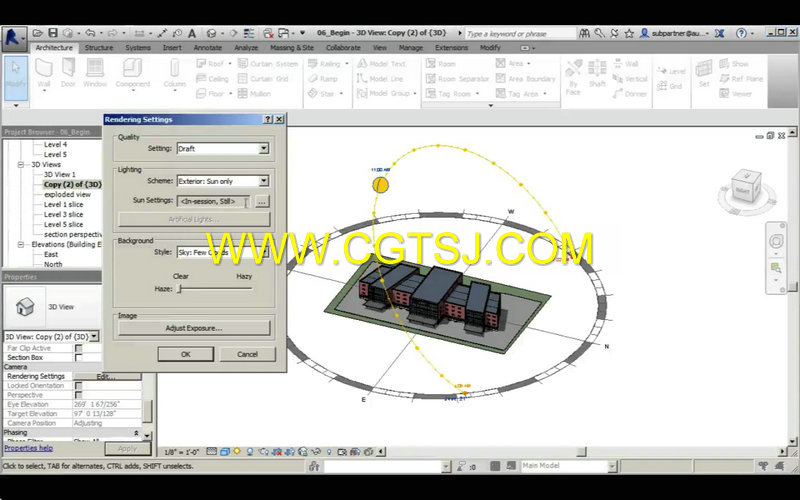

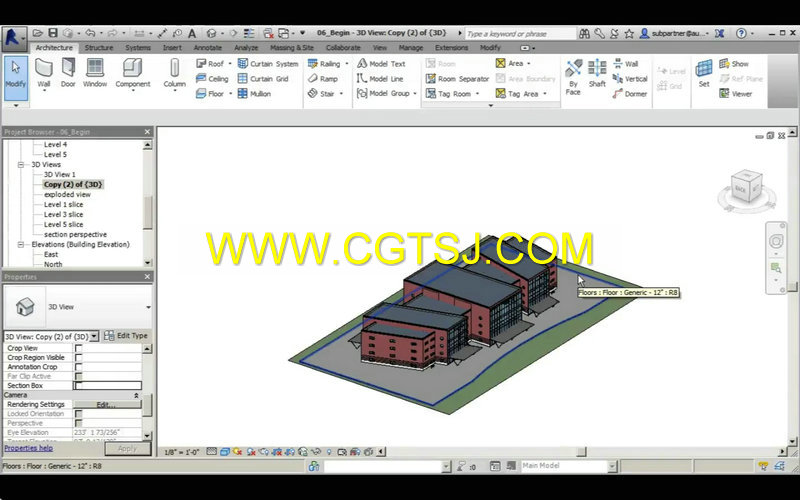

Once we’re comfortable with creating exploded views we’ll turn our attention to the site and create a view displaying the sun’s path and how it will determine the orientation of our building on the site. Once we’ve set our views we’ll then bring all images onto a sheet where we can then explore different layouts for our concept boards.

With these tools and quick tips you’ll be able to prepare images that will help you illustrate your design intent with ease.
